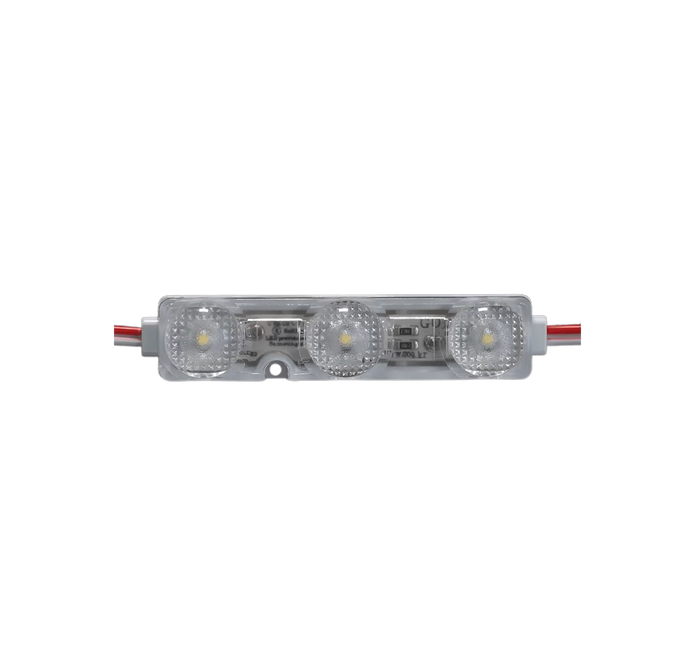

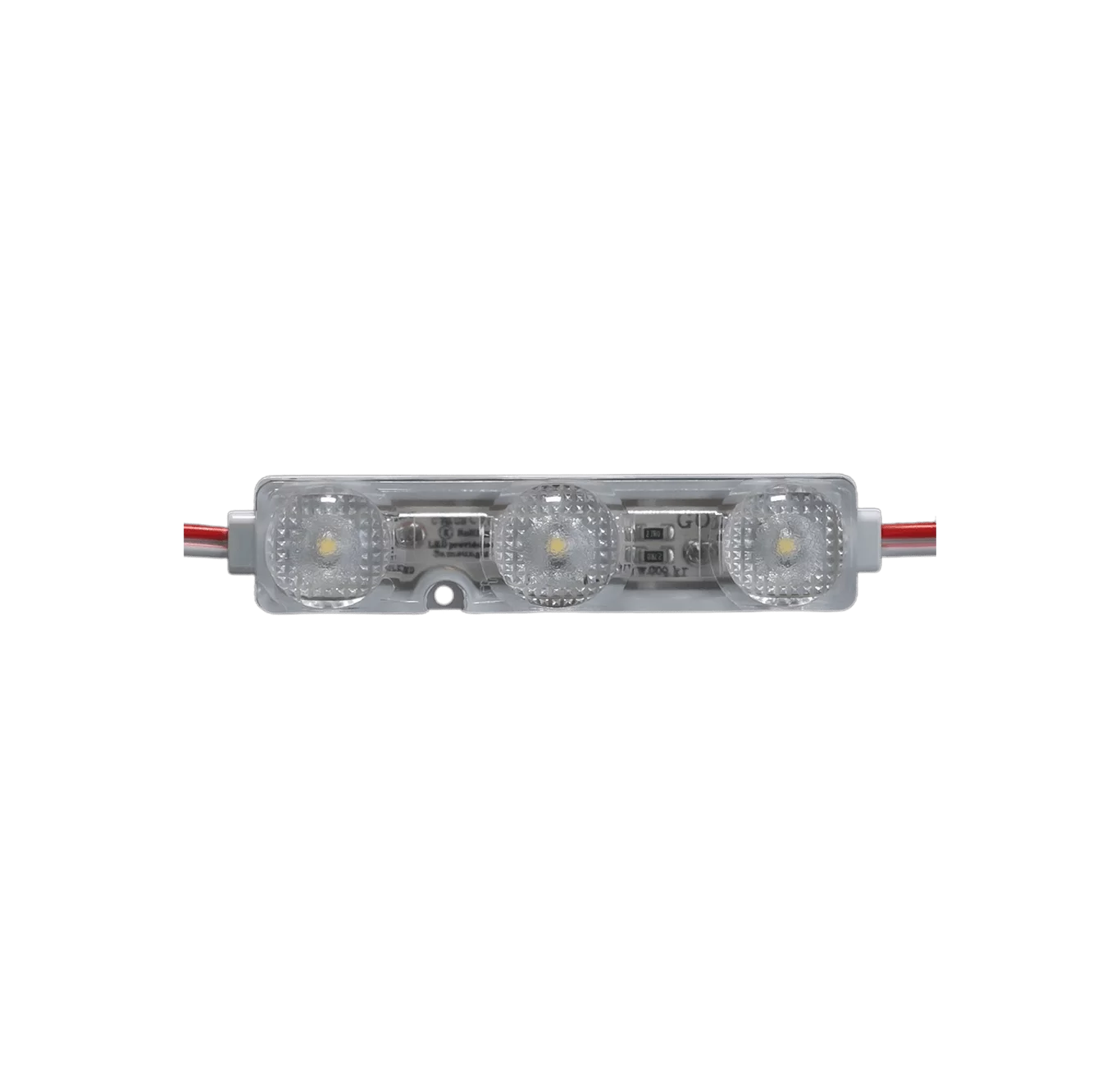

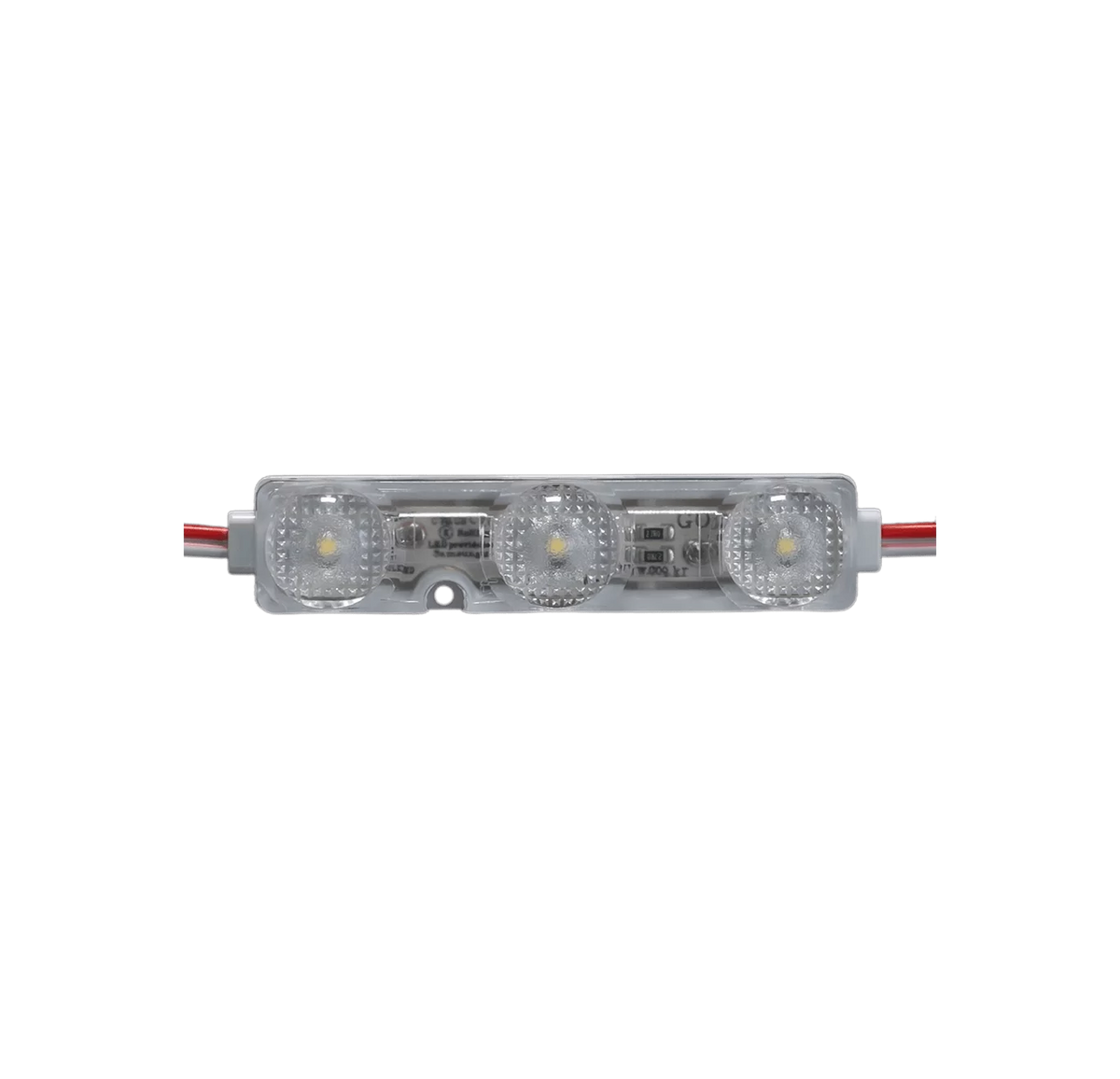

Module - 0.72W

This 0.72W LED module chain includes 100 high-efficiency LEDs with excellent color consistency (MacAdam 4) and a wide 160° beam angle. Rated IP67, the modules are protected against dust and water, suitable for permanent outdoor use in enclosed light boxes and channel letters with depths of 25–40mm. The flexible chain can be split between any modules and mounted via screws or pre-applied double-sided adhesive tape. Designed for signage and illuminated advertising, these modules offer a nominal lifetime of up to 50,000 hours at a case temperature of 50°C, ensuring long-lasting, reliable performance.

Specification:

• Nominal Voltage: 12.0V
• CRI: >70
• Typ. Power per module: 0.50W
• Luminous Efficacy: 90-94LM/W
• Max Connection Number: 100 pcs
• Distance of Modules (Wire): 120mm
• Ambient Temperature: -25°C to 50°C
• Max. Temp. on Mocule: 65°C
• Certification: CE, UL, ENEC, RoHS
• Protection Class of LED: IP67
