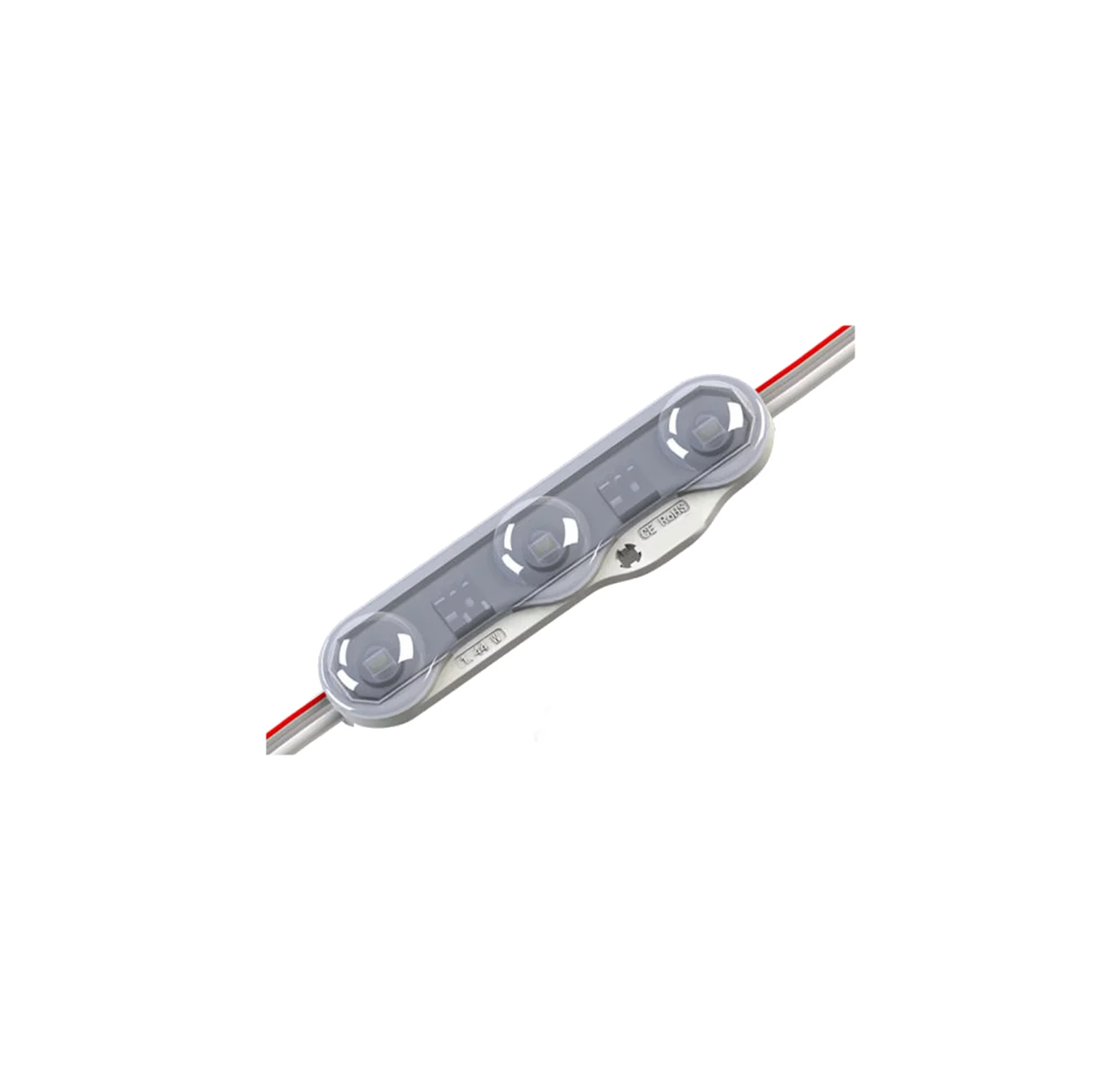

Module - 1.5 Watt

This 1.5 Watt LED module chain, consisting of 50 high-efficiency modules, is designed for signage and illuminated advertising, ideal for light boxes and channel letters with depths of 60 to 80 mm. Each module offers high color consistency (MacAdam 4) and a wide 160° beam angle, ensuring uniform illumination. Rated IP67, these modules are suitable for permanent outdoor use within enclosed fixtures. The flexible chain can be split between any modules and mounted via screws or pre-applied double-sided tape. With a compact size of 72 x 18.5 x 10 mm and a nominal lifetime of up to 50,000 hours at 50°C, it delivers reliable, long-lasting performance.

Specification:

• Nominal Voltage: 12.0V
• CRI: >70
• Typ. Power per module: 1.50W
• Luminous Efficacy: 90-96.7LM/W
• Max Connection Number: 50 pcs
• Distance of Modules (Wire): 200mm
• Ambient Temperature: -40°C to 85°C
• Max. Temp. on Mocule: 65°C
• Certification: CE, UL, ENEC, RoHS
• Protection Class of LED: IP67
