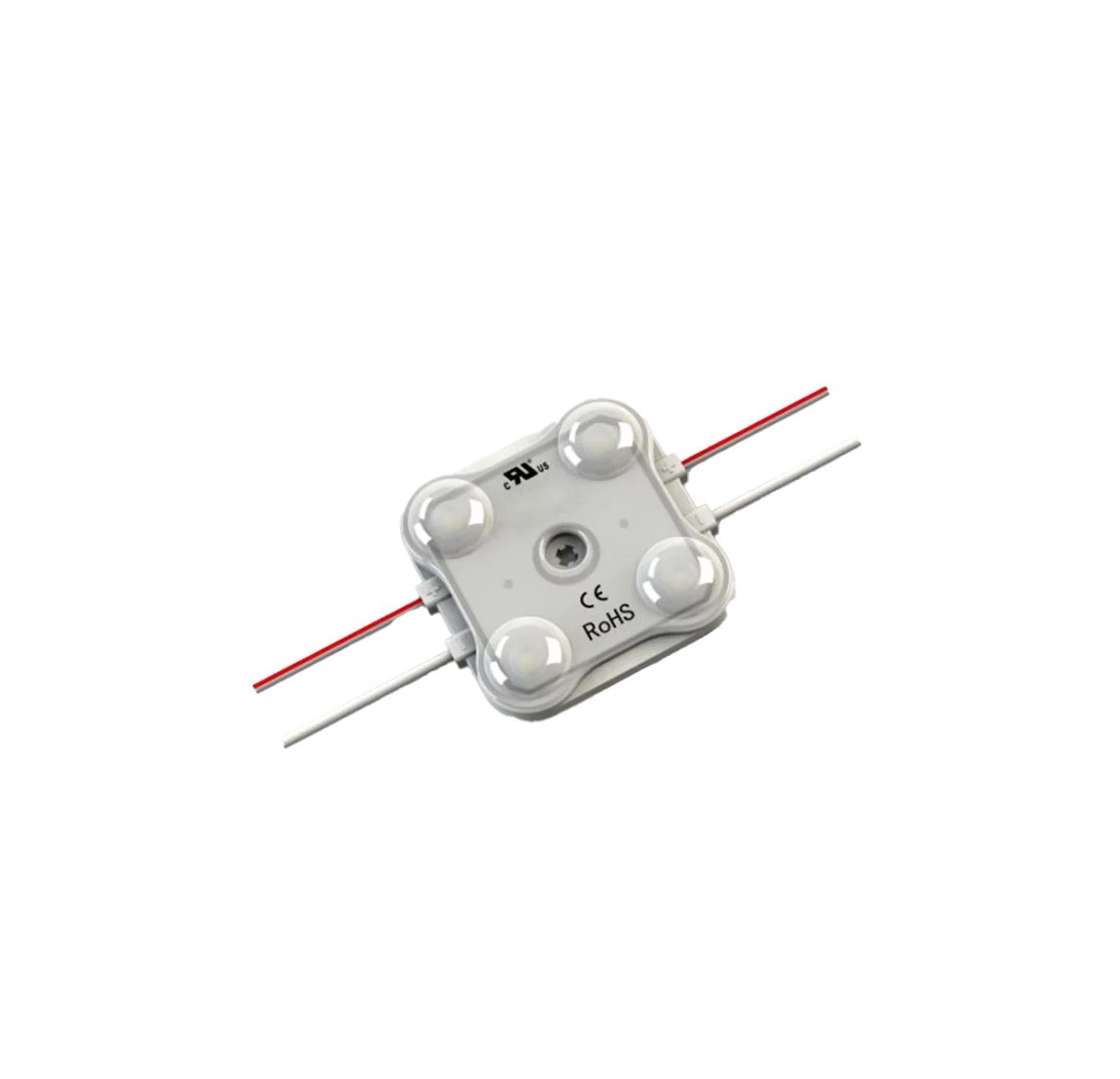

Module - 2 Watt

This 2 Watt LED module chain includes 30 high-efficiency modules designed for signage and illuminated advertising in light boxes and channel letters with depths from 180 to 350 mm. Each module offers high color consistency (MacAdam 4) and a wide 160° beam angle for even illumination. Rated IP67, these modules are suitable for permanent outdoor use within enclosed fixtures. The flexible chain can be split between any modules and mounted using screws or pre-applied double-sided tape. Compact at 42 x 42 x 10 mm, the modules provide a nominal lifetime of up to 50,000 hours at 50°C, ensuring durable and reliable performance.

Specification:

• Nominal Voltage: 12.0V
• CRI: >70
• Typ. Power per module: 2.0W
• Luminous Efficacy: 90-5LM/W
• Max Connection Number: 30 pcs
• Distance of Modules (Wire): 250mm
• Ambient Temperature: -40°C to 85°C
• Max. Temp. on Mocule: 65°C
• Certification: CE, UL, RoHS
• Protection Class of LED: IP67
